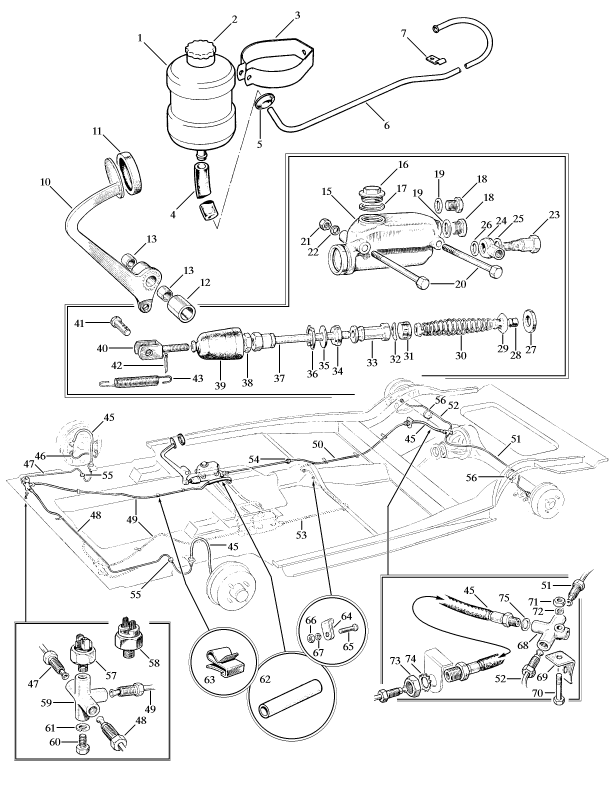

PAGE 17 HYDRAULICS
Back to INDEX
|
|
| # | PART # | DESCRIPTION | APPLICATION | Qty | BUY | SELL | | 1 | 15GR27 | RESERVOIR-BRAKE | EUROPEAN SPEC., (C) 1192884-ON. | 1 | N/A | SELL | | 2 | 15GR842 | CAP-RESERVOIR | EUROPEAN SPEC., (C) 1192884-ON. | 1 | N/A | SELL | | 3 | 15GR843 | BRACKET-RESERVOIR | EUROPEAN SPEC., (C) 1192884-ON. | 1 | N/A | SELL | | 4 | BCA4950 | HOSE-RESERVOIR TO PIPE | EUROPEAN SPEC., LATE, 21" LONG. | 1 | N/A | SELL | | 5 | 15GR844 | GROMMET | EUROPEAN SPEC., (C) 1192884-ON. | 1 | N/A | SELL | | 6 | 15GR788 | PIPE | EUROPEAN SPEC., (C) 1192884-ON. | 1 | N/A | SELL | | 7 | 15GR29 | CLIP | EUROPEAN SPEC., (C) 1192884-ON. | 1 | N/A | SELL | | 10 | 133575 | PEDAL-BRAKE | LHD, TO (C) 434583. | 1 | BUY | SELL | | | AAA1494 | PEDAL-BRAKE | RHD, ALL. LHD FROM (C) 434584. | 1 | N/A | SELL | | 11 | ACA5359 | PEDAL PAD | | 1 | BUY | SELL | | 12 | AAA1939 | SPACER | | 1 | N/A | SELL | | 13 | AAA1423 | BUSH | | 2 | BUY | SELL | | 15 | 17H7279 | MASTER CYLINDER ASSY. | TO (C) 448714. | 1 | N/A | SELL | | | GMC114 | MASTER CYLINDER ASSY. | FROM (C) 448801. | 1 | N/A | SELL | | | GMC115 | MASTER CYLINDER ASSY. | FROM (C) 990290. | 1 | N/A | SELL | | 16 | 17H7458 | CAP TDF | | 1 | N/A | SELL | | 17 | 17H7091 | WASHER TDF | | 1 | BUY | SELL | | 18 | 68625 | PLUG-SMALL | 1ST TYPE. | 1 | N/A | SELL | | | 7H7435 | PLUG-LARGE | 2ND TYPE. | 1 | N/A | SELL | | 19 | 11D5070 | GASKET-SMALL | 1ST TYPE. | 1 | N/A | SELL | | | 7H7436 | GASKET-LARGE | 2ND TYPE. | 1 | N/A | SELL | | 20 | AAA5984 | BOLT | | 2 | N/A | SELL | | 21 | FNZ106 | NUT | | 2 | N/A | SELL | | 22 | LWZ306 | WASHER, SPRING | | 2 | N/A | SELL | | 23 | BCA4455 | BOLT-BANJO | | 1 | N/A | SELL | | 24 | 27H7189 | CONNECTION-BANJO | | 1 | N/A | SELL | | 25 | 3H550 | WASHER,BRAKE LINE | | 1 | BUY | SELL | | 26 | 3H2287 | WASHER-COPPER | | 1 | N/A | SELL | | 27 | LKL71409 | KIT, BRAKE MASTER CYL | FOR GMC114. ITEMS MARKED WITH *. | 1 | N/A | SELL | | | 18G8004 | KIT, BRAKE MASTER CYL. | FOR GMC115. ITEMS MARKED WITH *. | 1 | BUY | SELL | | | 7H7489 | WASHER * | FOR GMC114. | 1 | N/A | SELL | | | 15GR489 | WASHER * | FOR GMC115. | 1 | N/A | SELL | | 28 | 7H7022 | CUP * | | 1 | N/A | SELL | | 29 | 7H7488 | VALVE BODY, MASTER CYLINDER | | 1 | BUY | SELL | | 30 | 7H7486 | SPRING | | 1 | N/A | SELL | | 31 | 7H7485 | CUP * | FOR GMC114. | 1 | N/A | SELL | | | 15GR485 | CUP * | FOR GMC115. | 1 | N/A | SELL | | 32 | 7H7484 | WASHER * | FOR GMC114. | 1 | N/A | SELL | | | 15GR484 | WASHER * | FOR GMC115. | 1 | N/A | SELL | | 33 | 37827 | PISTON | FOR GMC114. | 1 | N/A | SELL | | | 15GR827 | PISTON | FOR GMC115. | 1 | N/A | SELL | | 34 | 7H7490 | CUP-SECONDARY * | FOR GMC114. | 1 | N/A | SELL | | | 15GR490 | CUP-SECONDARY * | FOR GMC115. | 1 | N/A | SELL | | 35 | 68624 | WASHER | FOR GMC114. | 1 | N/A | SELL | | | 15GR624 | WASHER | FOR GMC115. | 1 | N/A | SELL | | 36 | 68623 | CIRCLIP | FOR GMC114. | 1 | N/A | SELL | | | 15GR623 | CIRCLIP | FOR GMC115. | 1 | N/A | SELL | | 37 | AAA413 | PUSH ROD-PISTON | | 1 | BUY | SELL | | 38 | 68629 | NUT-LOCKING | | 1 | N/A | SELL | | 39 | 68622 | BOOT-RUBBER * | | 1 | N/A | SELL | | 40 | 68628 | YOKE-PUSH ROD | | 1 | BUY | SELL | | 41 | AAA1486 | PIN-CLEVIS | | 1 | N/A | SELL | | 42 | SCP4 | COTTER PIN | | 1 | N/A | SELL | | 43 | AAA599 | SPRING-PEDAL RETURN | | 1 | N/A | SELL | | 45 | GBH109 | HOSE-BRAKE | TO (C) 228266. | 3 | BUY | SELL | | | GBH108 | BRAKE HOSE, FRONT & REAR | FROM (C) 228267. | 3 | N/A | SELL | | 46 | AJD18 | PIPE-BRAKE | | 2 | N/A | SELL | | 47 | AJD42 | PIPE-BRAKE | RHD. | 1 | N/A | SELL | | | AJD92 | PIPE-BRAKE | LHD. | 1 | N/A | SELL | | 48 | AJD92 | PIPE-BRAKE | RHD. | 1 | N/A | SELL | | | AJD42 | PIPE-BRAKE | LHD. | 1 | N/A | SELL | | 49 | AJD98 | PIPE-BRAKE | | 1 | N/A | SELL | | 50 | AJD108 | PIPE-BRAKE | RHD. | 1 | N/A | SELL | | 51 | AJD62 | PIPE-BRAKE | | 1 | N/A | SELL | | 52 | AJD44 | PIPE-BRAKE | | 1 | N/A | SELL | | 53 | AJD134 | PIPE-BRAKE | LHD. | 1 | N/A | SELL | | 54 | 133288 | GROMMET | FOR CENTER X-MEMBER. | 1 | N/A | SELL | | 55 | 84739 | GROMMET | FOR FRONT WHEEL ARCH. | 2 | N/A | SELL | | 56 | 128782 | STRAP | TO (C) 288266. | 2 | N/A | SELL | | | ACA5375 | STRAP | FROM (C) 228267. | 2 | N/A | SELL | | 57 | 34765 | SWITCH, BRAKE LITE | SCREW TERMINAL, TO (C) 990289. | 1 | BUY | SELL | | 58 | SPB400 | SWITCH, BRAKE LITE | SPADE TERMINAL, FROM (C) 990290. | 1 | BUY | SELL | | 59 | AAA424 | UNION-3-WAY | | 1 | BUY | SELL | | 60 | AJD6254Z | BOLT | | 1 | N/A | SELL | | 61 | LWZ303 | WASHER-SPRING | | 1 | N/A | SELL | | 62 | ACA5431 | SLEEVE-PIPE PROTECTOR | | 1 | N/A | SELL | | 63 | 17H9526 | CLIP-PIPE SUPPORT | | A/R | N/A | SELL | | 64 | PCR307 | CABLE CLIP 3/16 X 7/32 | LHD. | 2 | N/A | SELL | | 65 | AJD1244Z | BOLT | LHD. | 2 | N/A | SELL | | 66 | AJD8012Z | NUT | LHD. | 2 | N/A | SELL | | 67 | LWZ203 | WASHER, SPRING | LHD. | 2 | N/A | SELL | | 68 | 27H7165 | UNION-3-WAY | TO (C) 228266. | 1 | BUY | SELL | | | AJA5028 | UNION-3-WAY | FROM (C) 228267. | 1 | BUY | SELL | | 69 | AJA5017 | BRACKET | FROM (C) 228267. | 1 | BUY | SELL | | 70 | AJD6112Z | BOLT | FROM (C) 228267. | 1 | N/A | SELL | | 71 | AJD8104Z | NUT | FROM (C) 228267. | 1 | N/A | SELL | | 72 | LWZ204 | SPRING WASHER, 1/4IN ID | FROM (C) 228267. | 1 | N/A | SELL | | 73 | 2K8686 | LOCK NUT CLUTCH PIPE | | 3 | N/A | SELL | | 74 | LWN510 | WASHER, SHAKEPROOF | | 3 | N/A | SELL | | 75 | 3H2287 | WASHER-COPPER | | 3 | N/A | SELL |
|
