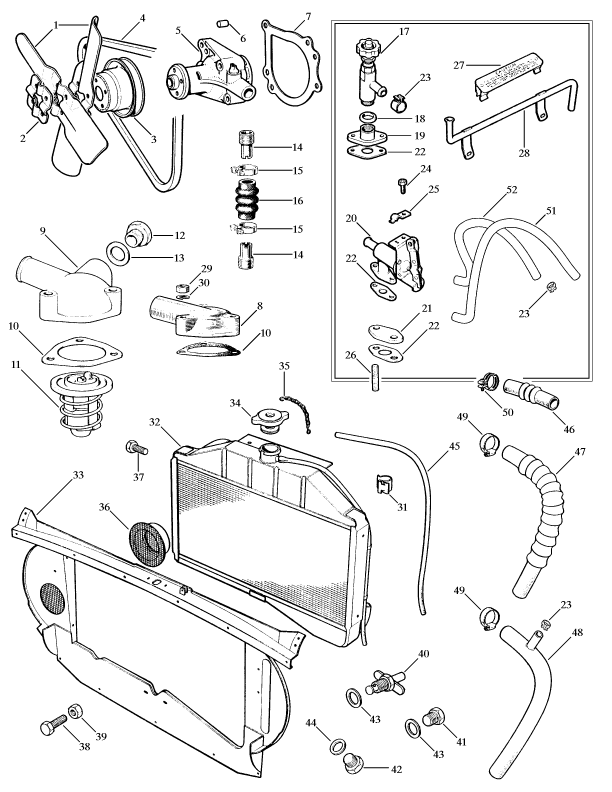

PAGE 5 COOLING SYSTEM
Back to INDEX
|
|
| # | PART # | DESCRIPTION | APPLICATION | Qty | BUY | SELL | | 1 | AEA301 | FAN BLADES VERT FLOW RAD | | 1/2 | BUY | SELL | | | 2A241 | FAN BLADE | TROPICAL APPLICATIONS | 2 | BUY | SELL | | 2 | 2A803 | FAN STIFFENER | | 1 | BUY | SELL | | 3 | CAM6239 | PULLEY - WATER PUMP | | 1 | BUY | SELL | | 4 | GCB10900 | FAN BELT (GFB203) | | 1 | N/A | SELL | | 5 | 2A579 | WATER PUMP -803 | 803CC | 1 | BUY | SELL | | | GWP132 | WATER PUMP,CROSS FLOW | | 1 | BUY | SELL | | 7 | 88G215 | GASKET, WATER PUMP | ALL | 1 | BUY | SELL | | 8 | 12G103 | T/STAT HOUSING | STANDARD | 1 | BUY | SELL | | 9 | 12A408 | THERM/HOUSING | TAPPED FOR TEMP GUAGE SENDER | 1 | N/A | SELL | | | 12G243 | T/STAT HOUSING | 1275 | 1 | N/A | SELL | | 10 | GTG101 | THERMOSTAT GASKET | ALL | 1 | BUY | SELL | | 11 | GTS102 | THERMOSTAT (165 DEG) | SUMMER USE | 1 | N/A | SELL | | | GTS104 | THERMOSTAT (180 DEG) | STANDARD USE | 1 | N/A | SELL | | | GTS106 | THERMOSTAT (190 DEG) | WINTER USE | 1 | BUY | SELL | | 12 | ADP210 | ENG PLUG | | 1 | N/A | SELL | | 13 | 1B3664 | SPACER SHIM | ALTERNATE TO AED172 | 1 | N/A | SELL | | | AED172 | COPPER SEAL | ALTERNATE TO 1B3664 | 1 | N/A | SELL | | 14 | 12A2075 | ADAPTOR,BY-PASS HOSE | | 1 | BUY | SELL | | 15 | 2A243 | CLAMP .59-.67' | | | N/A | SELL | | 16 | GZA2083 | HOSE, BY-PASS | RIBBED, ALTERNATE TO 12A1093 | 1 | N/A | SELL | | | 12A1093 | HOSE, BY-PASS | STRAIGHT, ALTERNATE TO GZA2083 | 1 | BUY | SELL | | 17 | 88G588 | HEATER VALVE | APPROX. TO-(C) 1039563 | 1 | N/A | SELL | | 18 | AAA836 | WASHER, TAP SEALING | APPROX. TO-(C) 1039563 | 1 | BUY | SELL | | 19 | ACA5456 | HEATER VALVE BASE | | 1 | N/A | SELL | | 20 | 13H5506 | VALVE, HEATER | APPROX. (C) 1039564-ON | 1 | N/A | SELL | | 21 | 2A180 | BLANKING PLATE | HEATER VALVE | 1 | N/A | SELL | | 22 | 88G221 | GASKET,HEATER VALVE | | 1 | BUY | SELL | | 23 | GHC507 | CLIP | ORIGINAL WIRE TYPE | 4 | N/A | SELL | | | GHC507A | CLIP, HOSE | JUBILEE TYPE, ALTERNATE TO GHC507 | 4 | N/A | SELL | | 24 | 53K126 | TOP CLIP SCREW | APPROX. (C) 1039564-ON | 1 | N/A | SELL | | 25 | 27H1193 | CLAMP, CABLE | APPROX. (C) 1039564-ON | 1 | N/A | SELL | | | ACA8211 | CABLE-HEATER CONTROL-LHD | APPROX. (C) 1039564-ON | 1 | N/A | SELL | | | ACA8192 | CABLE-HEATER CONTROL-RHD | APPROX. (C) 1039564-ON | 1 | N/A | SELL | | 26 | 53K402 | STUD HEATER TAP 1275 | HEATER TAP OUTLET | 2 | N/A | SELL | | 27 | CP303 | CAUTION PLATE | | 1 | BUY | SELL | | 28 | ACA5514 | PIPE, OUTLET | | 1 | BUY | SELL | | 29 | 14A9973 | HOSE, INLET | | 1 | N/A | SELL | | 30 | ACA8176 | HOSE, OUTLET | | 1 | N/A | SELL | | 31 | ARA951 | CLIP | OVERFLOW HOSE | A/R | N/A | SELL | | 32 | ARA97 | RADIATOR | EARLY | 1 | N/A | SELL | | | ARA213 | RADIATOR | LATE | 1 | N/A | SELL | | 33 | ADA1616 | COWL ASSEMBLY | APPROX. TO-(C) 1039563 | 1 | N/A | SELL | | | 12GR141 | COWL ASSEMBLY | APPROX. (C) 1039564-ON | 1 | N/A | SELL | | 34 | GRC103 | RADIATOR CAP, DEEP TYPE | 4 LBS | 1 | BUY | SELL | | | GRC101 | RADIATOR CAP, 7 LBS | 7 LBS | 1 | N/A | SELL | | | GRC111 | RADIATOR CAP, 13 LBS | 13 LBS | 1 | BUY | SELL | | 35 | 2GR783 | CHAIN, RETAINER | | 1 | N/A | SELL | | 36 | 2GR8041 | GRILLE, AIR INLET | | 1 | N/A | SELL | | 37 | AJD6254Z | BOLT | RADIATOR MOUNTING | 4 | N/A | SELL | | 38 | AJD1032 | BOLT | COWL FIXXING, TO-(C) 291140 | 3 | N/A | SELL | | | AJD6155Z | BOLT | COWL FIXXING, (C) 291140-UP | 8 | N/A | SELL | | 39 | AJD8012Z | NUT | FOR AJD1032 | 3 | N/A | SELL | | | AJD8104Z | NUT | FOR AJD6155Z | 8 | N/A | SELL | | 40 | 88G291 | RADIATOR DRAIN TAP TR | LATE TYPE | 1 | N/A | SELL | | | ARH515 | TAP, DRAIN | EARLY TYPE | 1 | N/A | SELL | | 41 | ARA1618 | DRAIN PLUG | ALTERNATE TO 88G291 | 1 | N/A | SELL | | 42 | ARA615 | PLUG | WHEN HEATER NOT FITTED | 1 | N/A | SELL | | 43 | ARH517 | WASHER | | 1 | BUY | SELL | | 44 | ARA616 | WASHER | FOR ARA615 | 1 | N/A | SELL | | 45 | GRH1002 | HOSE | SOLD PER FOOT | 36" | N/A | SELL | | 46 | GRH246 | HOSE, TOP | | 1 | N/A | SELL | | 47 | GRH299 | HOSE, BOTTOM | WITHOUT HEATER TAKE-OFF | 1 | N/A | SELL | | 48 | GRH204 | HOSE, BOTTOM | WITH HEATER TAKE-OFF | 1 | N/A | SELL | | 49 | CS4020 | HOSE CLMP WIRE 1.19-1.38 | ORIGINAL WIRE TYPE | 4 | N/A | SELL | | | GHC811 | HOSE CLIP | JUBILEE TYPE, ALTERNATE TO CS4020 | 4 | N/A | SELL | | 51 | GRH1003 | HOSE | SOLD BY THE FOOT. | A/R | N/A | SELL | | 52 | GRH1003 | HOSE | SOLD BY THE FOOT. | A/R | N/A | SELL |
|
