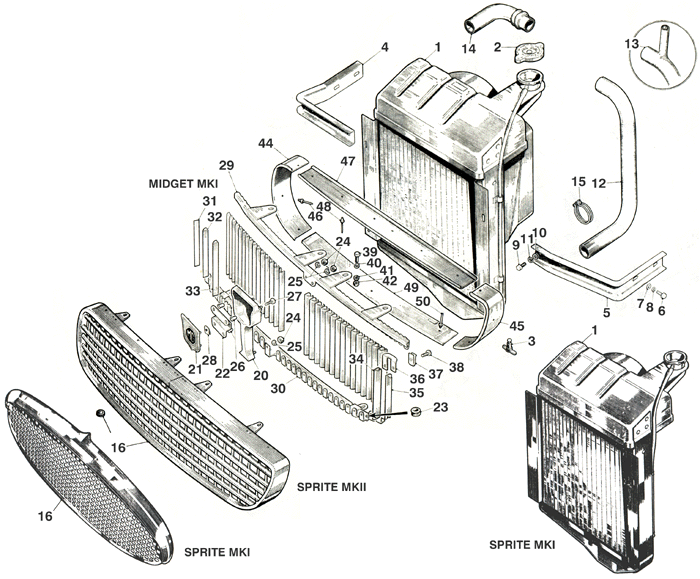

PAGE 12   RADIATORS & GRILLES
 Back to INDEX


# PART # DESCRIPTION APPLICATION Qty BUY SELL
1 ARA73 RADIATOR ASSEMBLY WITHOUT SHROUD 1 N/A Sell
ARA92 RADIATOR ASSEMBLY WITH SHROUD 1 N/A Sell
2 ARH1039 RADIATOR CAP, 7 LBS SPRITE MKI 1 N/A Sell
ARH1542 RADIATOR CAP, 7 LBS SPRITE MKII & MIDGET MKI 1 N/A Sell
3 3H2724 TAP - DRAIN SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
4 2A5591 RADIATOR BRACKET -RH SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
5 2A5592 RADIATOR BRACKET -LH SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
6 HZS0405 SCREW-PUMP TO CRANKCASE SPRITE MKI MKII & MIDGET MKI 3 N/A Sell
7 PWZ204 WASHER SPRITE MKI MKII & MIDGET MKI 3 N/A Sell
8 LWZ204 SPRING WASHER, 1/4IN ID SPRITE MKI MKII & MIDGET MKI 3 N/A Sell
9 HZS0404 SCREW-PEDAL TO FLOOR SPRITE MKI 4 N/A Sell
HZS0406 SCREW SPRITE MKII & MIDGET MKI 4 N/A Sell
10 PWZ104 WASHER SPRITE MKI MKII & MIDGET MKI 4 N/A Sell
11 LWZ304 WASHER, SPRING SPRITE MKI MKII & MIDGET MKI 4 N/A Sell
FNZ104 NUT - 1/4IN UNF SPRITE MKI MKII & MIDGET MKI 4 N/A Sell
12 2A2083 HOSE - RADIATOR TO PUMP SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
13 2A2084 RADIATOR HOSE,LOWER WHEN HEATER IS FITTED 1 N/A Sell
14 2A2082 RADIATOR HOSE,TOP SPRITE MKI MKII & MIDGET MKI 1 BUY Sell
15 8G550 CLIP - HOSE SPRITE MKI MKII & MIDGET MKI 4 N/A Sell
GBK1020 PIN SET 4 G/LING PAD SPRITE MKI 1 N/A Sell
GBK1021 BOLT KIT - RADIATOR SPRITE MKII & MIDGET MKI 1 N/A Sell
GBK1022 BOLT KIT - RADIATOR MOUNTING BRACKET SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
16 14A4715 GRILLE SPRITE MKI 1 N/A Sell
AHA5664 GRILLE ASSEMBLY - RADIATOR SPRITE MKII 1 N/A Sell
ARA113 GRILLE ASSEMBLY - RADIATOR MIDGET MKI 1 N/A Sell
17 BHA4082 PUSH-ON FIX SPRITE MKI 13 N/A Sell
20 ARA1212 GRILLE CENTER BAR MIDGET MKI 1 N/A Sell
21 ARA1211 RED/BLK BADGE (110) MIDGET MKI 1 N/A Sell
22 ARA1218 BRACKET - BADGE MOUNTING MIDGET MKI 1 N/A Sell
23 RFN204 GROMMET B POST SPRITE MKI MKII & MIDGET MKI 4 N/A Sell
23 ARA1259 GROMMET MIDGET MKI 4 N/A Sell
24 FNZ103 NUT - 3/16IN UNF MIDGET MKI 3 N/A Sell
25 LWZ203 WASHER, SPRING MIDGET MKI 3 N/A Sell
26 ARA1238 BLIND FIX MIDGET MKI 4 N/A Sell
27 PJZ804 SCREW MIDGET MKI 1 N/A Sell
28 PFS308 NUT - SPRING MIDGET MKI 1 N/A Sell
29 ARA1198 BAR ASSEMBLY - GRILLE - UPPER MIDGET MKI 1 N/A Sell
30 ARA1205 BAR ASSEMBLY - GRILLE - LOWER MIDGET MKI 1 N/A Sell
31 ARA1208 SLAT - SHORT - RH NO.1 MIDGET MKI 1 N/A Sell
32 ARA1215 SLAT - RH NO.2 MIDGET MKI 1 N/A Sell
33 ARA1210 GRILL SLAT INNER MIDGET MKI 32 N/A Sell
34 ARA1216 SLAT - LH - NO. 35 MIDGET MKI 1 N/A Sell
35 ARA1209 SLAT - SHORT - LH - NO. 36 MIDGET MKI 1 N/A Sell
ARA1206 SLAT LINK - RH MIDGET MKI 2 N/A Sell
37 ARH596 CLIP MIDGET MKI 76 N/A Sell
36 ARA1207 SLAT LINK - LH MIDGET MKI 2 N/A Sell
38 ARG642 SCREW 6 X 3/4 MIDGET MKI 76 N/A Sell
39 PMZ0408 SCREW GRILLE TO BODY (1/2IN[12.7 MM.]) SPRITE MKI MKII & MIDGET MKI 4 N/A Sell
PMZ0410 SCREW - GRILLE TO BODY (5/8IN[15.87 MM.] SPRITE MKI MKII & MIDGET MKI 2 N/A Sell
40 PWZ104 WASHER SPRITE MKI MKII & MIDGET MKI 6 N/A Sell
41 LWZ204 SPRING WASHER, 1/4IN ID SPRITE MKI MKII & MIDGET MKI 6 N/A Sell
42 FNZ104 NUT - 1/4IN UNF SPRITE MKI MKII & MIDGET MKI 4 N/A Sell
44 AHA5512 MOULDING,GRILLE RT SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
45 AHA5513 MOULDING,GRILLE LT SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
46 DMP0829 RIVET PART NO CHANGE; WAS 6K9788 6 N/A Sell
47 AHA5514 UPPR GRILLE MOULDNG SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
48 DMP0819 RIVET PART NO CHANGE; WAS ADB2582 6 N/A Sell
49 AHA5515 GRILLE SURROUND, LOWER SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
50 DMP0819 RIVET PART NO CHANGE; WAS ADB2582 4 N/A Sell
