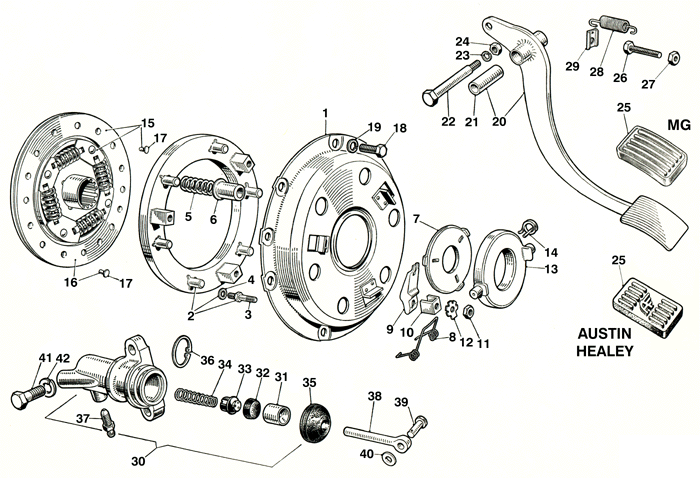

PAGE 15   CLUTCH
 Back to INDEX


# PART # DESCRIPTION APPLICATION Qty BUY SELL
GCK101 CLUTCH KIT TO (E)9CG-DA-H2139 INCLUDES #S 1, 1 1 N/A Sell
GCK102 CLUTCH KIT FROM (E)9CG-DA-H2140 INCLUDES #S 1, 1 N/A Sell
GCK103 CLUTCH KIT TO (E)10CG-DA-H10343 INCLUDES #S 1, 1 N/A Sell
GCK104 CLUTCH KIT FROM (E)10CG-DA-H10344 INCLUDES #S 1 N/A Sell
1 AEA355 CLUTCH COVER TO (E)9CG-DA-H2139 1 BUY Sell
22A218 COVER ASSEMBLY FROM (E)9CG-DA-H2140 1 N/A Sell
GCC106 COVER ASSEMBLY TO (E)10CG-DA-H10343 1 N/A Sell
GCC114 CLUTCH COVER FROM (E)10CG-DA-H10344 1 BUY Sell
2 7H3036 PLATE - PRESSURE TO (E)9CG-DA-H2139 1 N/A Sell
27H3275 PLATE - PRESSURE TO (E)9CG-DA-H36711 1 N/A Sell
3 7H3028 STUD PRESSURE PLATE TO (E)9CG-DA-H36711 3 N/A Sell
4 LWN405 WASHER, SHAKEPROOF TO (E)9CG-DA-H36711 3 N/A Sell
5 27H3101 SPRING THRUST (YELLOW AND DARK GREEN) TO (E)9CG-DA-H36711 6 N/A Sell
6 7H3221 CUP - THRUST SPRING TO (E)9CG-DA-H36711 6 N/A Sell
7 27H3177 PLATE - THRUST TO (E)9CG-DA-H36711 1 N/A Sell
8 7H3025 RETAINER - THRUST PLATE TO (E)9CG-DA-H36711 3 N/A Sell
9 7H3029 LEVER - RELEASE TO (E)9CG-DA-H36711 3 N/A Sell
10 7H3181 PLATE - BEARING RELEASE LEVER TO (E)9CG-DA-H36711 3 N/A Sell
11 7H3031 NUT FOR PRESSURE PLATE STUD TO (E)9CG-DA-H36711 3 N/A Sell
12 7H3222 WASHER - TAB - FOR NUT TO (E)9CG-DA-H36711 3 N/A Sell
7H3166 T/O BEARING 948CC 1 BUY Sell
13 GRB102 T/O BEARING 1098CC 1 N/A Sell
14 7H3185 CLIP,T/O BRG 948CC 2 N/A Sell
13H783 CLIP,T/O BRG 1098CC 2 BUY Sell
15 27H3231 CLUTCH DISC HB5084 948CC 1 N/A Sell
GCP103 CLUTCH DISC 1098CC 1 BUY Sell
16 8G8345 LINING AND RIVETS TO (E)9CG-DA-H36711 1 SET N/A Sell
17 7H3004 RIVET TO (E)9CG-DA-H36711 18 N/A Sell
18 51K2036 SCREW - CLUTCH TO FLYWHEEL SPRITE MKI MKII & MIDGET MKI 6 N/A Sell
19 2K5319 WASHER-SPRING-FOR SCREW SPRITE MKI MKII & MIDGET MKI 6 N/A Sell
2A5566 PEDAL - CLUTCH TO (C)4996 1 N/A Sell
20 AHA5431 PEDAL - CLUTCH SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
AHA6408 PEDAL - CLUTCH FROM (C) 20093 1 N/A Sell
21 2A5564 BUSH SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
22 2A5568 BOLT MKI SPR.PED.BOX SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
23 LWZ205 SPRING WASHER, 5/16 SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
24 FNZ105 NUT - 5/16IN UNF SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
25 2A5562 PAD - PEDAL (RUBBER) - FLYING A SPRITE MKI MKII 1 BUY Sell
AHA5326 PEDAL PAD,BRAKE/CL MIDGET MKI 1 BUY Sell
26 HZS0410 SCREW - PEDAL ADJUSTMENT SPRITE MKI 1 N/A Sell
HZS0408 SCREW - PEDAL ADJUSTMENT SPRITE MKII & MIDGET MKI 1 N/A Sell
27 FNZ204 JAM NUT 1/4 UNF SPRITE MKI MKII & MIDGET MKI 2 N/A Sell
28 2A5574 PEDAL RETURN SPRING SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
29 2A5573 RETAINER - RETURN SPRING SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
30 13H80 CLUTCH SLAVE CYLINDER TO (C)2139 1 N/A Sell
22A233 CLUTCH SLAVE CYLINDER FROM (C)2140 1 N/A Sell
31 17H7539 PISTON TO (C)2139 1 N/A Sell
17H7841 PISTON FROM (C)2140 1 N/A Sell
32 7H7923 SEAL-CUP SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
33 17H7540 FILLER PISTON CUP SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
34 17H7541 SPRING CUP FILLER SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
35 17H7268 BOOT SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
36 37H831 CIRCLIP SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
37 3H2428 BLEEDER SCREWS SPRITE MKI MKII & MIDGET MKI 1 BUY Sell
8G8146 KIT,CLUTCH SLAVE CYL INCLUDES NUS 32 & 35 1 BUY Sell
38 13H21 PUSH ROD,SLAVE CYL SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
39 CLZ0517 CLEVIS PIN 5/16 X 13/16 SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
40 PWZ105 FLAT WASHER, 5/16 ID SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
GHF502 SPLIT PIN SPRITE MKI MKII & MIDGET MKI 1 N/A Sell
41 53K152 BOLT - ARMATURE SPRITE MKI MKII & MIDGET MKI 2 N/A Sell
42 LWZ305 WASHER, SPRING SPRITE MKI MKII & MIDGET MKI 2 N/A Sell
