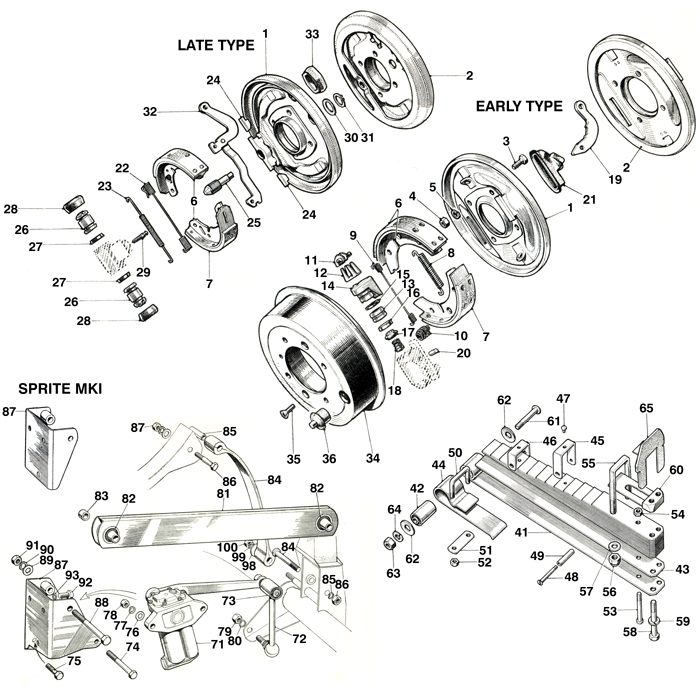

# | PART # | DESCRIPTION | APPLICATION | Qty | BUY | SELL |
1 | ATA7076 | PLATE-BRAKE-REAR-R/H | TO MG (C)13554 / AH (C)20544 | 1 | N/A | Sell |
| BTA466 | PLATE - BRAKE - RH | FROM MG (C)13555 / AH (C)20545 | 1 | N/A | Sell |
| BTA566 | PLATE - BRAKE - RH | FROM MG (C)16184 | 1 | N/A | Sell |
2 | ATA7077 | PLATE-BRAKE-REAR-L/H | TO MG (C)13554 / AH (C)20544 | 1 | N/A | Sell |
| BTA467 | PLATE - BRAKE - LH | FROM MG (C)13555 / AH (C)20545 | 1 | N/A | Sell |
| BTA567 | PLATE - BRAKE - LH | FROM MG (C)16184 | 1 | N/A | Sell |
3 | HZS0506 | NUT | SPRITE MKI MKII & MIDGET MKII | 8 | N/A | Sell |
4 | FNZ105 | NUT - 5/16IN UNF | SPRITE MKI MKII & MIDGET MKII | 8 | N/A | Sell |
5 | LWZ305 | WASHER, SPRING | SPRITE MKI MKII & MIDGET MKII | 8 | N/A | Sell |
6 | AJA5086 | BRAKE SHOES, REAR | TO MG (C)7897 / AH (C)12867 | 2 | N/A | Sell |
| 8G8671 | SHOE ASSEMBLY - BRAKE | FROM MG (C)7898 / AH (C)12868 | 2 | N/A | Sell |
| 8G8646 | BRAKE SHOES | FROM MG (C)13555 / AH (C)20545 | 2 | N/A | Sell |
| 8G8762 | BRAKE SHOES | FROM MG (C)16184 | 2 | N/A | Sell |
7 | 300826 | LINER WITH RIVETS | TO MG (C)7897 / AH (C)12867 | 1 | N/A | Sell |
| 8G8672 | LINER WITH RIVETS | FROM MG (C)7898 / AH (C)12868 | 1 | N/A | Sell |
| 8G8647 | LINER WITH RIVETS | FROM MG (C)13555 / AH (C)20545 | 1 | N/A | Sell |
| 8G8763 | LINER WITH RIVETS | FROM MG (C)16184 | 1 | N/A | Sell |
| 7H7398 | RIVET | SPRITE MKI MKII & MIDGET MKII | 28 | N/A | Sell |
8 | 301633 | SPRING,REAR PULL-OFF | TO MG (C)13554 / AH (C)20544 | 2 | BUY | Sell |
9 | 301634 | BRAKE SHOE RETURN SPRING | TO MG (C)13554 / AH (C)20544 | 2 | BUY | Sell |
10 | 301020 | FUEL GAUGE | TO MG (C)13554 / AH (C)20544 | 4 | N/A | Sell |
11 | 68648 | ADJUSTER MICRAM MIDG | TO MG (C)13554 / AH (C)20544 | 2 | N/A | Sell |
12 | 68643 | MASK-ADJUSTER | TO MG (C)13554 / AH (C)20544 | 2 | N/A | Sell |
| 301622 | WHEEL CYLINDER | TO MG (C)13554 / AH (C)20544 | 2 | N/A | Sell |
| 7H7942 | BODY | TO MG (C)13554 / AH (C)20544 | 2 | N/A | Sell |
13 | 7H7928 | PISTON - HYDRAULIC | TO MG (C)13554 / AH (C)20544 | 2 | N/A | Sell |
14 | AJA5008 | PISTON WITH DUST COVER | TO MG (C)13554 / AH (C)20544 | 2 | N/A | Sell |
15 | 17H7707 | SEAL | TO MG (C)13554 / AH (C)20544 | 2 | N/A | Sell |
16 | 7H7923 | SEAL-CUP | TO MG (C)13554 / AH (C)20544 | 2 | N/A | Sell |
17 | 7H7940 | FILLER - CUP | TO MG (C)13554 / AH (C)20544 | 2 | N/A | Sell |
18 | 7H7939 | SPRING - CUP FILLER | TO MG (C)13554 / AH (C)20544 | 2 | N/A | Sell |
19 | 27H7395 | LEVER-HAND BRAKE | TO MG (C)13554 / AH (C)20544 | 2 | N/A | Sell |
20 | 17H7203 | PIN-LEVER | TO MG (C)13554 / AH (C)20544 | 2 | N/A | Sell |
21 | 7H7943 | KIT,REAR WHEEL CYL | TO MG (C)13554 / AH (C)20544 | 2 | BUY | Sell |
22 | 17H7947 | SPRING | FROM MG (C)13555 / AH (C)20545 | 1 | N/A | Sell |
| 17H7948 | SPRING,BRAKE | FROM MG (C)13555 / AH (C)20545 | 1 | N/A | Sell |
23 | 17H7921 | SPRING,BRAKE SHOE RETURN | FROM MG (C)13555 / AH (C)20545 | 2 | N/A | Sell |
24 | 17H7618 | TAPPET,BRAKE ADJUSTER | FROM MG (C)13555 / AH (C)20545 | 4 | BUY | Sell |
25 | 17H7619 | WEDGE,BRAKE SHOE | FROM MG (C)13555 / AH (C)20545 | 2 | N/A | Sell |
| 17H2826 | WHEEL CYLINDER, REAR | FROM MG (C)13555 / AH (C)20545 | 2 | N/A | Sell |
| 17H6993 | CYLINDER ASSEMBLY - WHEEL | FROM MG (C)16184 | 2 | N/A | Sell |
26 | 17H2827 | PISTON | FROM MG (C)13555 / AH (C)20545 | 4 | N/A | Sell |
| 17H7626 | PISTON | FROM MG (C)16184 | 4 | N/A | Sell |
27 | 17H7515 | SEAL | FROM MG (C)13555 / AH (C)20545 | 4 | N/A | Sell |
| 17H7739 | SEAL | FROM MG (C)16184 | 4 | N/A | Sell |
28 | 17H7766 | BOOT - PISTON | FROM MG (C)13555 / AH (C)20545 | 4 | N/A | Sell |
| 17H7511 | BOOT - PISTON | FROM MG (C)16184 | 4 | N/A | Sell |
29 | 17H7623 | SCREW-BLEEDER MGB | FROM MG (C)13555 / AH (C)20545 | 2 | N/A | Sell |
30 | 17H7613 | WASHER - BELLEVILLE - WHEEL CYLINDER FIX | FROM MG (C)13555 / AH (C)20545 | 2 | N/A | Sell |
31 | 17H7622 | CIRCLIP | FROM MG (C)13555 / AH (C)20545 | 2 | N/A | Sell |
32 | 17H2824 | HANDBRAKE LEVER RH | FROM MG (C)13555 / AH (C)20545 | 1 | N/A | Sell |
| 17H2825 | HANDBRAKE LEVER LH | FROM MG (C)13555 / AH (C)20545 | 1 | N/A | Sell |
33 | 17H7612 | HANDBRK LEVER BOOT | FROM MG (C)13555 / AH (C)20545 | 2 | BUY | Sell |
34 | 2A7168 | BRAKE DRUM | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
35 | CMZ0410 | SCREW - SHAFT TO HUB | SPRITE MKI MKII & MIDGET MKII | 4 | N/A | Sell |
36 | 2A7228 | PLUG (RUBBER),BRAKE DRUM | SPRITE MKI MKII & MIDGET MKII | 2 | BUY | Sell |
| 8G8243 | KIT,REAR WHEEL CYL | INCLUDES #S 16 17 & 22 | 1 | BUY | Sell |
| 8G8741 | KIT - WHEEL CYLINDER REPAIR | FROM MG (C)13555 / AH (C)20545 - IN | 2 | N/A | Sell |
| 8G8255 | KIT - WHEEL CYLINDER REPAIR | FROM MG (C)16184 - INCLUDES #S 27 & | 2 | N/A | Sell |
| 2A7309 | 1/4 ELLIPTIC REAR SPRING | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
41 | AHA5331 | LEAF - MAIN | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
42 | 2H4605 | BUSH,REAR LEAF SPRING | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
43 | AHA5332 | LEAF - 2ND | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
44 | AHA5350 | CLIP - SAFETY | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
45 | AHA5346 | CLIP - SPRING (LONG) | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
46 | AHA5347 | CLIP - SPRING (SHORT) | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
47 | RRS0405 | RIVET FOR CLIP | SPRITE MKI MKII & MIDGET MKII | 4 | N/A | Sell |
48 | AHA5348 | SCREW - SPRING CLIP | SPRITE MKI MKII & MIDGET MKII | 4 | N/A | Sell |
49 | AHA5349 | TUBE - DISTANCE - CLIP | SPRITE MKI MKII & MIDGET MKII | 4 | N/A | Sell |
50 | AHA5351 | U BOLT - SAFETY CLIP TO SPRING | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
51 | AHA5352 | PLATE FOR INUIN BOLT | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
52 | FNZ105 | NUT - 5/16IN UNF | SPRITE MKI MKII & MIDGET MKII | 4 | N/A | Sell |
53 | AHA5353 | BOLT - LOCATING | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
54 | FNZ205 | NUT | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
55 | AHA5221 | U BOLT, REAR AXLE | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
56 | LNZ108 | NUT 1/2' NYLOC | SPRITE MKI MKII & MIDGET MKII | 4 | N/A | Sell |
57 | PWZ108 | WASHER | SPRITE MKI MKII & MIDGET MKII | 4 | N/A | Sell |
58 | HBZ0626 | BOLT-SUPPORT PLATE TO CROSS-MEMBER | SPRITE MKI MKII & MIDGET MKII | 4 | N/A | Sell |
59 | LWZ306 | WASHER, SPRING | SPRITE MKI MKII & MIDGET MKII | 4 | N/A | Sell |
60 | AHA5222 | SPRINGVANCHOR PLATE | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
61 | 2A7279 | BOLT 1/4 ELL.SPRING | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
62 | AHA6370 | WASHER - FIBRE - SPRING TO REAR AXLE | FROM AH (C)12068 / MG (C)7442 | 4 | N/A | Sell |
63 | FNZ107 | NUT FOR PIN | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
| HBZ0624 | BOLT - SPRING TO FRAME | OPTIONAL EXTRA | 4 | N/A | Sell |
| AHA5468 | SPRING ASSEMBLY - EXTRA - HEAVY | OPTIONAL EXTRA | 2 | N/A | Sell |
64 | LWZ307 | WASHER, SPRING | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
65 | AHA6418 | SEAL ASSEMBLY - SPRING HOUSING | FROM AH (C)22907 / MG (C)14527 | 2 | N/A | Sell |
| 2A7298 | ABSORBER-SHOCK-REAR-RH | TO (C)4332 | 1 | N/A | Sell |
| AHA5312 | R. REAR SHOCK | FROM AH (C)4333 | 1 | N/A | Sell |
| 2A7299 | ABSORBER-SHOCK-REAR-LH | TO (C)4332 | 1 | N/A | Sell |
71 | AHA5311 | L. REAR SHOCK | FROM AH (C)4333 | 1 | N/A | Sell |
72 | 2A7303 | LINK-SHOCK ABSORBER | SPRITE MKI | 2 | N/A | Sell |
| AHA5313 | REAR SHOCK LINK | SPRITE MKII & MIDGET MKII | 2 | BUY | Sell |
73 | 97H222 | RSU BUSHING | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
74 | HBZ0630 | BOLT-ABSORBER TO BRACKET | FROM AH (C)4333 | 2 | N/A | Sell |
75 | HBZ0612 | BOLT-ABSORBER TO BRACKET | FROM AH (C)4333 | 2 | N/A | Sell |
76 | PWZ106 | WASHER | FROM AH (C)4333 | 4 | N/A | Sell |
77 | LWZ306 | WASHER, SPRING | FROM AH (C)4333 | 4 | N/A | Sell |
78 | LNZ106 | LOCK NUT | FROM AH (C)4333 - ALTERNATIVE TO LN | 4 | N/A | Sell |
| LNZ206 | NUT-ADJUSTING LINK | FROM AH (C)4333 - ALTERNATIVE TO LN | 4 | N/A | Sell |
79 | FNZ107 | NUT FOR PIN | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
80 | LWZ307 | WASHER, SPRING | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
81 | 2A7310 | TOP LINK 1/4 ELL. | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
82 | 2A7278 | BUSH,REAR RADIUS ARM | SPRITE MKI MKII & MIDGET MKII | 4 | N/A | Sell |
83 | AHA5224 | DISTANCE PIECE-BUSH-TOP LINK | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
84 | 2A7279 | BOLT 1/4 ELL.SPRING | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
85 | LWZ307 | WASHER, SPRING | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
86 | FNZ107 | NUT FOR PIN | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
| 2A7314 | BRACKET-MOUNTING-LINK AND ABSORBER-RH | TO (C)4332 | 1 | N/A | Sell |
| AHA5305 | BRACKET-MOUNTING-LINK AND ABSORBER-RH | FROM AH (C)4333 | 1 | N/A | Sell |
| 2A7315 | BRACKET-MOUNTING-LINK AND ABSORBER-LH | TO (C)4332 | 1 | N/A | Sell |
87 | AHA5306 | BRACKET-MOUNTING-LINK AND ABSORBER-LH | FROM AH (C)4333 | 1 | N/A | Sell |
88 | HBZ0732 | BOLT-TOP LINK TO MOUNTING BRACKET | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
89 | PWZ107 | WASHER | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
90 | LWZ307 | WASHER, SPRING | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
91 | FNZ107 | NUT FOR PIN | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
92 | HZS0610 | SCREW-MOUNTING BRACKET TO REAR CROSS-MEM | SPRITE MKI MKII & MIDGET MKII | 6 | N/A | Sell |
93 | LWZ206 | WASHER, SPRING | SPRITE MKI MKII & MIDGET MKII | 6 | N/A | Sell |
94 | AHH5081 | CHECKSTRAP,REAR AXLE | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
95 | 2A7306 | DISTANCE TUBE STRAP | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
96 | HBZ0618 | BOLT-STRAP TO FLOOR BRACKET | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
97 | LNZ206 | NUT-ADJUSTING LINK | ALTERNATIVE TO LNZ106 | 2 | N/A | Sell |
98 | PWZ206 | OUTER WASHER | SPRITE MKI MKII & MIDGET MKII | 2 | BUY | Sell |
98 | LNZ106 | LOCK NUT | ALTERNATIVE TO LNZ206 | 2 | N/A | Sell |
99 | LWZ206 | WASHER, SPRING | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
100 | FNZ106 | NUT | SPRITE MKI MKII & MIDGET MKII | 2 | N/A | Sell |
101 | HZS0609 | SCREW | SPRITE MKI MKII & MIDGET MKII | 4 | N/A | Sell |
