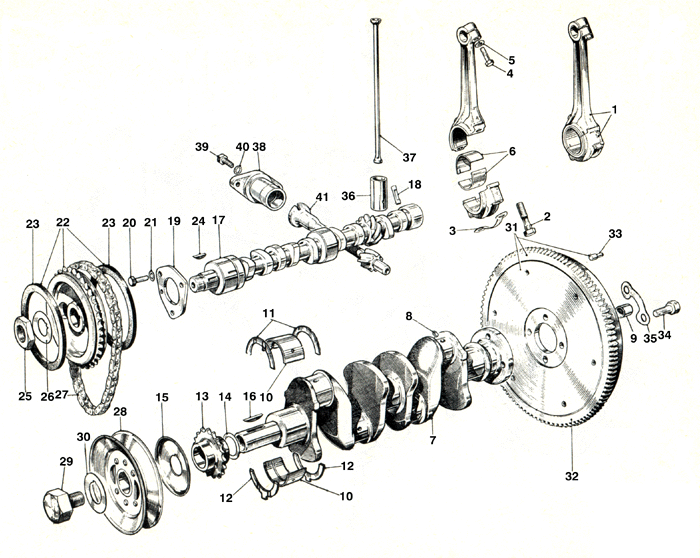

PAGE 2 INTERNAL ENGINE
Back to INDEX
|
|
| # | PART # | DESCRIPTION | APPLICATION | Qty | BUY | SELL | | | 18G8079 | LOCK WASHER KIT 948-1098 | | 1 | BUY | Sell | | 1 | 2A656 | CONNECTING ROD 1&3 948CC | | 2 | N/A | Sell | | | 2A654 | CONNECTING ROD 2&4 948CC | | 2 | N/A | Sell | | 2 | 2A659 | CON ROD BOLT | | 8 | N/A | Sell | | 3 | 2A660 | LOCK TAB,CONNECTING ROD | | 4 | N/A | Sell | | 4 | 51K1382 | BOLT, SMALL END CLAMPING | | 4 | N/A | Sell | | 5 | LWN305 | WASHER-SPRING- FOR SCREW | | 4 | N/A | Sell | | 6 | 8G2198 | ROD BEARING SET | | 1 | N/A | Sell | | | 8G219810 | ROD BEARING SET | | 1 | N/A | Sell | | | 8G219820 | ROD BEARING SET | | 1 | N/A | Sell | | | 8G219830 | ROD BEARING SET | | 1 | BUY | Sell | | | 8G219840 | ROD BEARING SET | | 1 | BUY | Sell | | 7 | 2A828 | CRANKSHAFT | | 1 | N/A | Sell | | 8 | 1G1167 | CRANKSHAFT PLUG | | 4 | N/A | Sell | | 9 | 1A1559 | PILOT BUSHING | | 1 | BUY | Sell | | | 2A830 | CRANKSHAFT WITH BUSH | ALTERNATIVE TO 2A828 | 1 | N/A | Sell | | | 1A1559 | PILOT BUSHING | | 1 | BUY | Sell | | 10 | 8G2222 | MAIN BEARING SET | | 1 | BUY | Sell | | | 8G222210 | MAIN BEARING SET | | 1 | BUY | Sell | | | 8G222220 | MAIN BRG SET .020 SPM-1 | | 1 | N/A | Sell | | | 8G222230 | MAIN BRG .030 SPM-1 | | 1 | N/A | Sell | | | 8G222240 | BEARING-MAIN (.040IN [1.016 MM.] O/S) | | 1 | N/A | Sell | | 11 | 1A1716 | WASHER -THRUST-UPPER (STANDARD) | | 2 | N/A | Sell | | | 1A171603 | WASHER -THRUST-UPPER (.003IN [.076MM] O/ | | 2 | N/A | Sell | | 12 | 1A1717 | WASHER-THRUST LOWER (STANDARD) | | 2 | N/A | Sell | | | 1A171703 | WASHER -THRUST-LOWER (.003IN [.076MM] O/ | | 2 | N/A | Sell | | | W2014S | THRUST WASHER SET | | 1 | N/A | Sell | | 13 | 2A76 | CRANK GEAR,SINGLE | | 1 | N/A | Sell | | 14 | 6K628 | SHIM - PACKING CRANK | | 1 | BUY | Sell | | 15 | 2A77 | THROWER-OIL (FRONT) | SPRITE MKI | 1 | N/A | Sell | | | 2A1015 | OIL THROWER | SPRITE MKII & MIDGET MKI | 1 | BUY | Sell | | 16 | 6K836 | WOODRUFF KEY,CRANK | | 1 | N/A | Sell | | 17 | 2A571 | CAMSHAFT | SPRITE MKI | 1 | N/A | Sell | | | AEA630 | CAMSHFT,NEW | SPRITE MKII & MIDGET MKI | 1 | N/A | Sell | | 18 | 2A299 | PIN | | 1 | N/A | Sell | | 19 | 2A84 | CAM LOCATING PLATE | | 1 | BUY | Sell | | 20 | HNS0406 | SCREW-PLATE TO CRANKCASE | | 3 | N/A | Sell | | 21 | LWN404 | LOCKWASHER | | 3 | N/A | Sell | | 22 | 2A85 | CAM GEAR, SINGLE | | 1 | N/A | Sell | | 23 | 8G549 | TENSIONER RING | | 2 | BUY | Sell | | 24 | WKN505 | WOODRUFF KEY, CAMSHAFT | | 1 | N/A | Sell | | 25 | 6K629 | NUT,CAM GEAR TO CAMSHAFT | | 1 | BUY | Sell | | 26 | 2A759 | LOCK WASHER,CAM | | 1 | N/A | Sell | | 27 | 3H2127 | TIMING CHAIN -SINGLE ROW | | 1 | BUY | Sell | | 28 | 2A940 | PULLEY,CRANK | | 1 | BUY | Sell | | 29 | AEA312 | BOLT, FRONT CRANK | | 1 | BUY | Sell | | 30 | 1G1319 | WASHER,CRANK NUT | | 1 | BUY | Sell | | 31 | 2A516 | FLYWHEEL | SPRITE MKI | 1 | N/A | Sell | | | AEA594 | FLYWHEEL WITH STARTER RING AND DOWELS | SPRITE MKII & MIDGET MKI | 1 | N/A | Sell | | 32 | 2A378 | RING GEAR, FLYWHEEL | SPRITE MKI | 1 | BUY | Sell | | | AEA596 | RING GEAR, FLYWHEEL | SPRITE MKII & MIDGET MKI | 1 | BUY | Sell | | 33 | 1G2984 | DOWEL PIN,FLYWHEEL | | 2 | BUY | Sell | | 34 | 6K630 | BOLT FLYWHL SPM 948 | | 4 | N/A | Sell | | 35 | 2K7816 | LOCK TAB | | 2 | N/A | Sell | | 36 | 2A13 | TAPPET | | 8 | BUY | Sell | | | 2A001310 | TAPPET (.010IN [.254 MM.] O/S) | | 8 | N/A | Sell | | | 2A001320 | TAPPET (.020IN [.508 MM.] O/S) | | 8 | N/A | Sell | | 37 | 12A250 | PUSHROD,ENGINE | | 8 | N/A | Sell | | 38 | 2A612 | HOUSING-DISTRIBUTOR | | 1 | BUY | Sell | | 39 | HZS0406 | SCREW | | 1 | N/A | Sell | | 40 | LWN404 | LOCKWASHER | | 1 | N/A | Sell | | 41 | 2A847 | SPINDLE, DIST DRIVE | | 1 | BUY | Sell |
|
 |
|
